Prezzo:

Video

Rettifica senza centri CINCINNATI modello 3-300 TWIN GRIP

9 June 2022 at 11:48:58

Rettifica senza centri CINCINNATI modello 3-300 TWIN GRIP
Diametro min/max rettificabile 2,5 - 150 mm
Fascia mola 355 mm
Diametro mola 610 mm
Diametro mola di trascinamento (massimo) 355 mm
Dispositivo automatico elettro idraulico per l'incremento
- Id.no.6187 -

Rettifica senza centri CINCINNATI modello 3-300 TWIN GRIP
Diametro min/max rettificabile 2,5 - 150 mm
Fascia mola 355 mm
Diametro mola 610 mm
Diametro mola di trascinamento (massimo) 355 mm
Dispositivo automatico elettro idraulico per l'incremento
- Id.no.6187 -

B.M. MACCHINE UTENSILI srl

Nome:

+39 0114031124

bm@bmtorino.it

E-Mail:

Tel:

Indirizzo:

VIA DE AMICIS EDMONDO 146

Prezzo:

Video

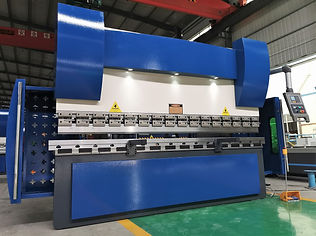

Piegatrice idraulica sincronizzata mecos synchro 70/200

4 May 2022 at 14:34:18

Piegatrice idraulica sincronizzata mecos synchro 70/200
Lunghezza piegatura 2050 mm
Potenza 70 ton.
CNC esa videografico 4 assi
Attacco utensili rapido tipo schiavi
Incavo laterale
Macchina conforme alle normative ce
Peso 5800 kg
-Macchinario usato funzionante in buone condizioni, visionabile presso i nostri magazzini associati.
Possibilità di trasporto e logistica in tutta Italia ed all’estero.
A disposizione per qualsiasi informazione senza impegno.
COD: 2268

Piegatrice idraulica sincronizzata mecos synchro 70/200
Lunghezza piegatura 2050 mm
Potenza 70 ton.
CNC esa videografico 4 assi
Attacco utensili rapido tipo schiavi
Incavo laterale
Macchina conforme alle normative ce
Peso 5800 kg
-Macchinario usato funzionante in buone condizioni, visionabile presso i nostri magazzini associati.
Possibilità di trasporto e logistica in tutta Italia ed all’estero.
A disposizione per qualsiasi informazione senza impegno.
COD: 2268

konzu srls

Nome:

3927573175

konzusrl@gmail.com

E-Mail:

Tel:

Indirizzo:

Prezzo:

45000

Video

Giddings & Lewis-Fraser 80B130 Heavy Duty Table Type Horizontal Boring

4 May 2022 at 09:03:02

Giddings & Lewis-Fraser 80B130 Heavy Duty Table Type Horizontal Boring & Milling Machine.Spindle diameter   130mmSpindle taper No. 50 ISOSpindle traverse 36”Facing head diameter 26”Facing slide travel 5”Vertical traverse of spindle frame 81”Table size overall 60” x 122”Auxiliary powered lift table 72” x 72”Main table loading 30,000 lbCross traverse of table 108”Longitudinal traverse of table 74”Spindle speeds (16) 6 - 1120 rpmFacing head speeds 1.5 - 280 rpmFeeds to table and spindle head (inf. var.) 1.10 - 3360 mm/min.Facing head feeds (inf. var..) 0.001 – 3.0 mm/rev.Main drive motor 18 kWMachine equipped with :-NEWALL DP700 3 Axis D.R.O.Double outrigger supports.Pendant control.Boring spindle support.Machine Manuals.

Giddings & Lewis-Fraser 80B130 Heavy Duty Table Type Horizontal Boring & Milling Machine.Spindle diameter   130mmSpindle taper No. 50 ISOSpindle traverse 36”Facing head diameter 26”Facing slide travel 5”Vertical traverse of spindle frame 81”Table size overall 60” x 122”Auxiliary powered lift table 72” x 72”Main table loading 30,000 lbCross traverse of table 108”Longitudinal traverse of table 74”Spindle speeds (16) 6 - 1120 rpmFacing head speeds 1.5 - 280 rpmFeeds to table and spindle head (inf. var.) 1.10 - 3360 mm/min.Facing head feeds (inf. var..) 0.001 – 3.0 mm/rev.Main drive motor 18 kWMachine equipped with :-NEWALL DP700 3 Axis D.R.O.Double outrigger supports.Pendant control.Boring spindle support.Machine Manuals.

New England LLP

Nome:

00447836583457

tom@newengland.co.uk

E-Mail:

Tel:

Indirizzo:

Unit 4 Anglo African Ind Est

Prezzo:

45000

Video

KEARNS-RICHARDS SE150 HEAVY DUTY TABLE TYPE HORIZONTAL BORING & MILLIN

4 May 2022 at 08:46:39

Spindle diameter                                                    150 mm
Spindle taper                                                           No. 50 ISO
Spindle traverse                                                      750 mm
Facing head diameter                                            1050 mm
Facing head capacity                                             1600 mm
Vertical traverse of spindle frame                       1900 mm
Table size overall                                                    3200 x 1500 mm
Revolving table size                                               1500 x 1500 mm
Table positioning revolving rate                          0.1 rpm
Table loading                                                          15000 kg
Cross traverse of table                                          3010 mm
Longitudinal traverse of table                             2500 mm
Spindle speeds (Inf. variable)                              5 - 1000 rpm
Facing head speeds (Inf. variable)                     1.25 - 250 rpm
Feeds to table and spindle head    (inf. var.)     1.30 - 3800 mm/min
Feeds to spindle and facing slide  (inf. var..)     0.65 - 1900 mm/min
Main drive motor                                                   22.4  kW
Machine weight approx.                                       45,000 kg

Machine equipped with :-
HEIDENHAIN 3 Axis D.R.O.
Feed transmission via recirculating ball screws.
Double outrigger supports.
Power rotation to table.
Pendant control.
Heavy duty double swivel universal milling head.
Boring spindle support.
Facing tool holder.
Extended facing tool holder.
Tooling.
Machine Manuals.

Spindle diameter                                                    150 mm
Spindle taper                                                           No. 50 ISO
Spindle traverse                                                      750 mm
Facing head diameter                                            1050 mm
Facing head capacity                                             1600 mm
Vertical traverse of spindle frame                       1900 mm
Table size overall                                                    3200 x 1500 mm
Revolving table size                                               1500 x 1500 mm
Table positioning revolving rate                          0.1 rpm
Table loading                                                          15000 kg
Cross traverse of table                                          3010 mm
Longitudinal traverse of table                             2500 mm
Spindle speeds (Inf. variable)                              5 - 1000 rpm
Facing head speeds (Inf. variable)                     1.25 - 250 rpm
Feeds to table and spindle head    (inf. var.)     1.30 - 3800 mm/min
Feeds to spindle and facing slide  (inf. var..)     0.65 - 1900 mm/min
Main drive motor                                                   22.4  kW
Machine weight approx.                                       45,000 kg

Machine equipped with :-
HEIDENHAIN 3 Axis D.R.O.
Feed transmission via recirculating ball screws.
Double outrigger supports.
Power rotation to table.
Pendant control.
Heavy duty double swivel universal milling head.
Boring spindle support.
Facing tool holder.
Extended facing tool holder.
Tooling.
Machine Manuals.

New England LLP

Nome:

00447836583457

tom@newengland.co.uk

E-Mail:

Tel:

Indirizzo:

Unit 4 Anglo African Ind Est
